LDDMM: parallel transporting face motion#

This notebook shows how to run Deformetrica’s parallel transport example (surface mesh section).

[1]:

import os
import shutil
from pathlib import Path

import numpy as np
import pyvista as pv
from in_out.array_readers_and_writers import read_3D_array

import polpo.lddmm as plddmm
import polpo.preprocessing.dict as ppdict
from polpo.plot.pyvista import RegisteredMeshesGifPlotter
from polpo.preprocessing import IndexSelector, Map
from polpo.preprocessing.load.deformetrica import (
    LoadControlPointsFlow,
    LoadMeshFlow,
    LoadMomentaFlow,
)
from polpo.preprocessing.mesh.io import PvReader
from polpo.preprocessing.path import FileFinder
from polpo.preprocessing.str import Contains, DigitFinder, RegexGroupFinder

W0929 14:33:59.328000 198892 site-packages/torch/utils/cpp_extension.py:118] No CUDA runtime is found, using CUDA_HOME='/usr'

[2]:

DEBUG = False
RECOMPUTE = True
STATIC_VIZ = True

if STATIC_VIZ:
    pv.set_jupyter_backend("static")


viz_transform = pv.Transform()
viz_transform.rotate_y(45)
viz_transform.rotate_z(45)

viz_transform_alien = pv.Transform()
viz_transform_alien.rotate_y(75)
viz_transform_alien.rotate_z(45)

path_to_tp = RegexGroupFinder(r"_tp_(\d+)") + int


truncate_dict = ppdict.TruncateDict(n_keys=10)

[3]:

DATA_DIR = Path("_data/alien/data")

OUTPUTS_DIR = Path("results/alien")

OUTPUTS_DIR_CLI = Path("results/alien/output")
OUTPUTS_DIR_PY = Path("results/alien/output_py")

FULL_RUN_DIR = OUTPUTS_DIR_PY / "full"
SHOOT_DIR = OUTPUTS_DIR_PY / "shoot"
PARALLEL_DIR = OUTPUTS_DIR_PY / "parallel"
POLE_LADDER_DIR = OUTPUTS_DIR_PY / "pole"

if OUTPUTS_DIR.exists() and RECOMPUTE:
    shutil.rmtree(OUTPUTS_DIR)

[4]:

def compute_max_vertex_abs_diff(mesh_dict, cmp_mesh_dict):
    keys = set(mesh_dict.keys()).intersection(set(cmp_mesh_dict.keys()))

    diffs = [
        np.amax(np.abs(mesh_dict[key].points - cmp_mesh_dict[key].points))
        for key in keys
    ]

    return np.amax(diffs)

[5]:

kernel_width = 0.005

Initial data#

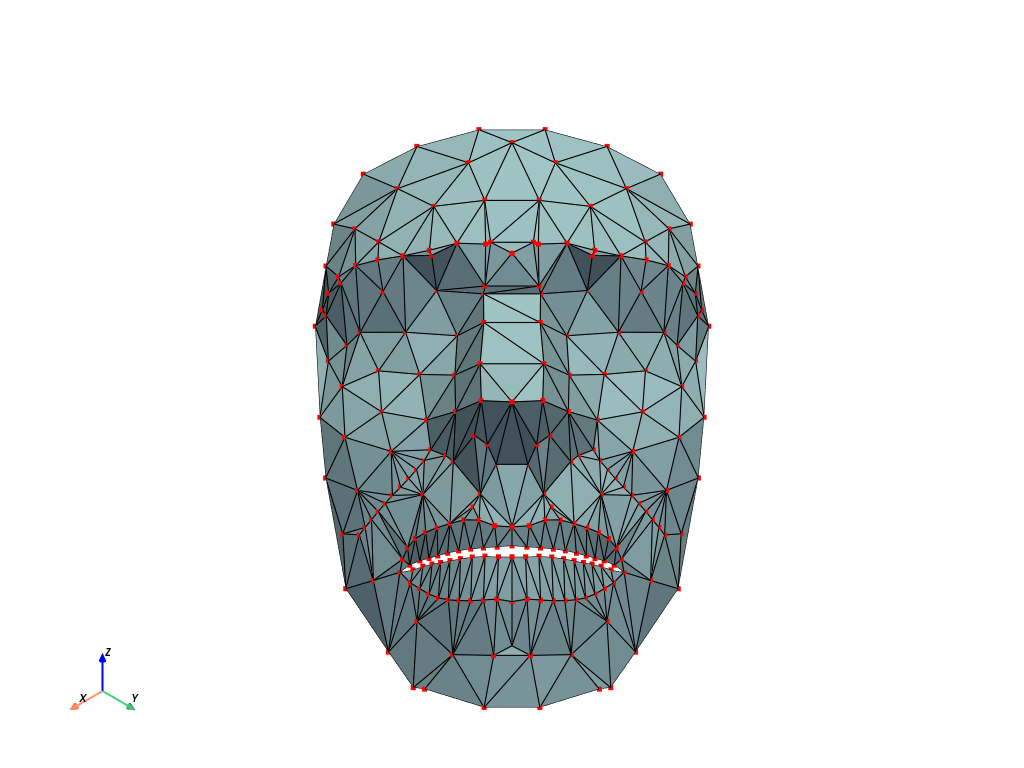

Let’s visualize the input data, i.e. the base shape and the geodesic (parametrized by control points and momenta).

[6]:

cp_name = DATA_DIR / "control_points.txt"
momenta_name = DATA_DIR / "momenta.txt"
momenta_to_transport_name = DATA_DIR / "momenta_to_transport.txt"

base_shape_name = DATA_DIR / "face.vtk"

[7]:

base_shape = PvReader()(base_shape_name)

cp, momenta = read_3D_array(cp_name), read_3D_array(momenta_name)

[8]:

base_shape.n_points, cp.shape, momenta.shape

[8]:

(240, (240, 3), (240, 3))

[9]:

pl = pv.Plotter(border=False)

base_shape.clear_data()

pl.add_mesh(base_shape.transform(viz_transform, inplace=False), show_edges=True)
pl.add_points(pv.PolyData(cp).transform(viz_transform, inplace=False), color="red")

pl.add_axes()

pl.show()

../../../_images/_notebooks_how_to_all_lddmm_shape_geodesic_12_0.png

Now, we run the CLI (check model.xml for run details; spoiler: it runs parallel transport).

[10]:

if not OUTPUTS_DIR_CLI.exists():
    os.system(f"deformetrica compute _data/alien/model.xml -o {OUTPUTS_DIR_CLI}")

W0929 14:34:03.778000 199212 site-packages/torch/utils/cpp_extension.py:118] No CUDA runtime is found, using CUDA_HOME='/usr'

Logger has been set to: WARNING
initial-control-points-to-transport was not specified, I am assuming they are the same as initial-control-points

The above is equivalent to running the following code.

[11]:

if not FULL_RUN_DIR.exists():
    plddmm.geometry.parallel_transport(
        source=base_shape_name,
        control_points=cp_name,
        momenta=momenta_name,
        momenta_to_transport=momenta_to_transport_name,
        kernel_width=kernel_width,
        concentration_of_time_points=10,
        output_dir=FULL_RUN_DIR,
        tmin=0,
        tmax=9,
    )

initial-control-points-to-transport was not specified, I am assuming they are the same as initial-control-points
/home/luisfpereira/miniconda3/envs/deformetrica/lib/python3.12/site-packages/in_out/dataset_functions.py:265: UserWarning: Watch out, I did not get a distance type for the object shape, Please make sure you are running shooting or a parallel transport, otherwise distances are required.
  warnings.warn(msg)

A quick sanity check of the equivalence of both runs.

[12]:

parallel_meshes_pipe = LoadMeshFlow(
    as_path=False,
    extra_rules=Contains("parallel_curve"),
)

parallel_meshes = parallel_meshes_pipe(OUTPUTS_DIR_CLI)
parallel_meshes_ = parallel_meshes_pipe(FULL_RUN_DIR)

[13]:

compute_max_vertex_abs_diff(parallel_meshes, parallel_meshes_)

[13]:

np.float64(0.0)

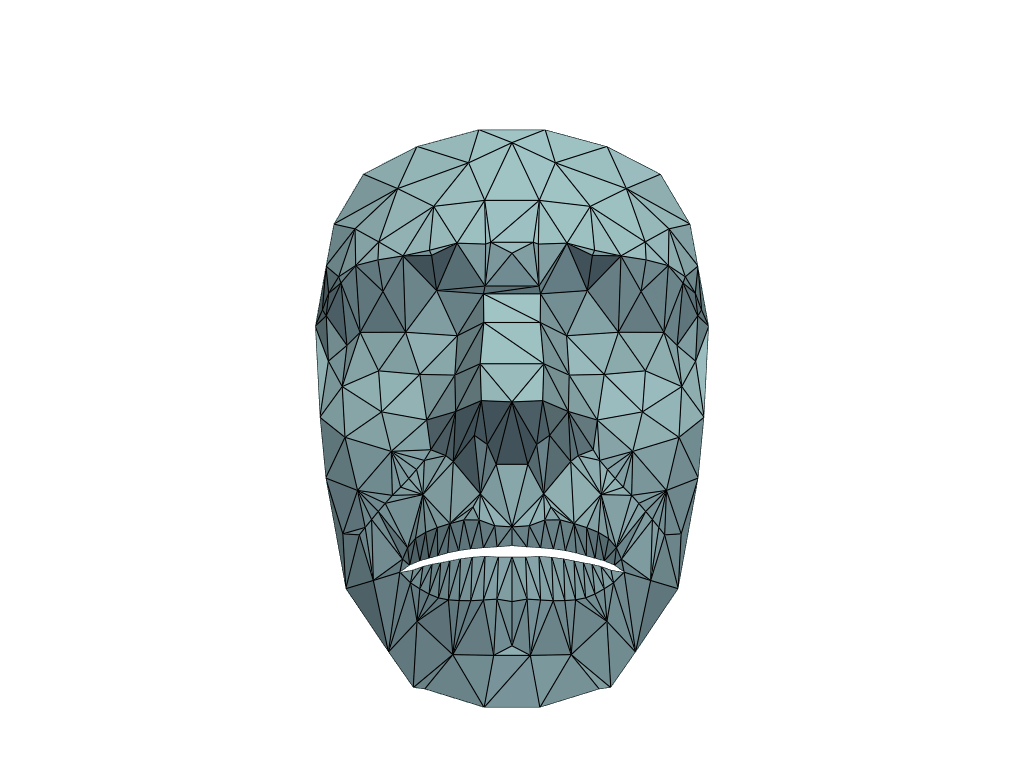

Geodesic flow#

Points along the geodesic are computed when calling parallel transport.

Available output files:

meshes: Regression_GeodesicFlow_face_tp_*_age_*.vtk
control points: ControlPoints_tp_*__age_*.txt
momenta: Momenta_tp_*__age_*.txt

[14]:

mesh_flow_pipe = LoadMeshFlow(
    as_path=False,
    extra_rules=Contains("_GeodesicFlow_"),
)

[15]:

regression_meshes = mesh_flow_pipe(OUTPUTS_DIR_CLI)

[16]:

meshes = {
    key: mesh.transform(viz_transform, inplace=False)
    for key, mesh in regression_meshes.items()
}

if DEBUG:
    meshes = truncate_dict(meshes)


pl = RegisteredMeshesGifPlotter(
    fps=10,
    border=False,
    off_screen=True,
    notebook=False,
)

pl.add_meshes(meshes)
pl.close()

pl.show()

[16]:

../../../_images/_notebooks_how_to_all_lddmm_shape_geodesic_24_0.png

The above, can be achieved with shooting.

Available output files (assuming write_params=True):

meshes: Shooting__GeodesicFlow__shape__tp_*__age_*.vtk
control points: Shooting__GeodesicFlow__ControlPoints__tp_*__age_*.txt
momenta: Shooting__GeodesicFlow__Momenta__tp_*__age_*.txt

[17]:

# TODO: make dict with kernel specification?
plddmm.geometry.shoot(
    source=base_shape_name,
    control_points=cp_name,
    momenta=momenta_name,
    kernel_width=kernel_width,
    concentration_of_time_points=10,
    kernel_type="torch",
    output_dir=SHOOT_DIR,
    write_adjoint_parameters=True,
    tmin=0.0,
    tmax=9.0,
)

Defaulting geodesic t0 to 1.

[18]:

regression_meshes_ = mesh_flow_pipe(SHOOT_DIR)

[19]:

compute_max_vertex_abs_diff(regression_meshes, regression_meshes_)

[19]:

np.float64(9.763240814208984e-05)

Control points and momenta are also available.

[20]:

cp_flow_pipe = LoadControlPointsFlow(as_path=False)

[21]:

cps = cp_flow_pipe(OUTPUTS_DIR_CLI)
cps_ = cp_flow_pipe(SHOOT_DIR)

np.amax(np.abs(cps - cps_))

[21]:

np.float64(3.6000000000036e-05)

[22]:

momenta_flow_pipe = LoadMomentaFlow(
    as_path=False,
    extra_rules=Contains("Transported", negate=True),
)

[23]:

momenta = momenta_flow_pipe(OUTPUTS_DIR_CLI)
momenta_ = momenta_flow_pipe(SHOOT_DIR)

np.amax(np.abs(momenta - momenta_))

[23]:

np.float64(1.4572500000000193e-05)

Parallel curve#

Meshes along the parallel geodesic can be found under the name face_parallel_curve_tp_*__age_*.vtk.

[24]:

meshes = {
    key: mesh.transform(viz_transform_alien, inplace=False)
    for key, mesh in parallel_meshes.items()
}

if DEBUG:
    meshes = truncate_dict(meshes)


pl = RegisteredMeshesGifPlotter(
    fps=10,
    border=False,
    off_screen=True,
    notebook=False,
)

pl.add_meshes(meshes)
pl.close()

pl.show()

[24]:

../../../_images/_notebooks_how_to_all_lddmm_shape_geodesic_36_0.png

The parallel geodesic is obtained by shooting from the main geodesic using the transported momenta.

[25]:

mesh_flow_names_pipe = LoadMeshFlow(
    as_path=True,
    extra_rules=Contains("_GeodesicFlow_"),
)
regression_meshes_names = mesh_flow_names_pipe(OUTPUTS_DIR_CLI)

cp_flow_names_pipe = LoadControlPointsFlow(as_path=True)
cp_names = cp_flow_names_pipe(OUTPUTS_DIR_CLI)

trans_momenta_name_flow_pipe = LoadMomentaFlow(
    as_path=True,
    extra_rules=Contains("Transported"),
)
transported_momenta_names = trans_momenta_name_flow_pipe(OUTPUTS_DIR_CLI)

[26]:

data = ppdict.DictMerger(as_dict=True)(
    (
        regression_meshes_names,
        cp_names,
        transported_momenta_names,
    )
)

# if fails for 16, 27
data = ppdict.TruncateDict(n_keys=16)(data)

if DEBUG:
    data = truncate_dict(data)


for key, (mesh_name, cps_name, momenta_name) in data.items():
    plddmm.geometry.shoot(
        source=mesh_name,
        control_points=cps_name,
        momenta=momenta_name,
        kernel_width=kernel_width,
        number_of_time_steps=10,
        kernel_type="torch",
        output_dir=PARALLEL_DIR / f"tp_{key}",
        write_adjoint_parameters=False,
    )

Defaulting geodesic t0 to 1.
Defaulting geodesic tmax to 1.
Defaulting geodesic tmin to 0.
Defaulting geodesic t0 to 1.
Defaulting geodesic tmax to 1.
Defaulting geodesic tmin to 0.
Defaulting geodesic t0 to 1.
Defaulting geodesic tmax to 1.
Defaulting geodesic tmin to 0.
Defaulting geodesic t0 to 1.
Defaulting geodesic tmax to 1.
Defaulting geodesic tmin to 0.
Defaulting geodesic t0 to 1.
Defaulting geodesic tmax to 1.
Defaulting geodesic tmin to 0.
Defaulting geodesic t0 to 1.
Defaulting geodesic tmax to 1.
Defaulting geodesic tmin to 0.
Defaulting geodesic t0 to 1.
Defaulting geodesic tmax to 1.
Defaulting geodesic tmin to 0.
Defaulting geodesic t0 to 1.
Defaulting geodesic tmax to 1.
Defaulting geodesic tmin to 0.
Defaulting geodesic t0 to 1.
Defaulting geodesic tmax to 1.
Defaulting geodesic tmin to 0.
Defaulting geodesic t0 to 1.
Defaulting geodesic tmax to 1.
Defaulting geodesic tmin to 0.
Defaulting geodesic t0 to 1.
Defaulting geodesic tmax to 1.
Defaulting geodesic tmin to 0.
Defaulting geodesic t0 to 1.
Defaulting geodesic tmax to 1.
Defaulting geodesic tmin to 0.
Defaulting geodesic t0 to 1.
Defaulting geodesic tmax to 1.
Defaulting geodesic tmin to 0.
Defaulting geodesic t0 to 1.
Defaulting geodesic tmax to 1.
Defaulting geodesic tmin to 0.
Defaulting geodesic t0 to 1.
Defaulting geodesic tmax to 1.
Defaulting geodesic tmin to 0.
Defaulting geodesic t0 to 1.
Defaulting geodesic tmax to 1.
Defaulting geodesic tmin to 0.

[27]:

file_finder = (
    FileFinder(rules=Contains("tp_"))
    + ppdict.HashWithIncoming(key_step=Map(DigitFinder()), key_sorter=lambda x: x)
    + ppdict.DictMap(
        mesh_flow_names_pipe + (lambda x: x.popitem()) + IndexSelector(index=1)
    )
)

pipe = file_finder + ppdict.DictMap(plddmm.io._file2mesh(as_pv=True))

parallel_meshes_ = pipe(PARALLEL_DIR)

[28]:

compute_max_vertex_abs_diff(parallel_meshes, parallel_meshes_)

[28]:

np.float64(33.456961154937744)

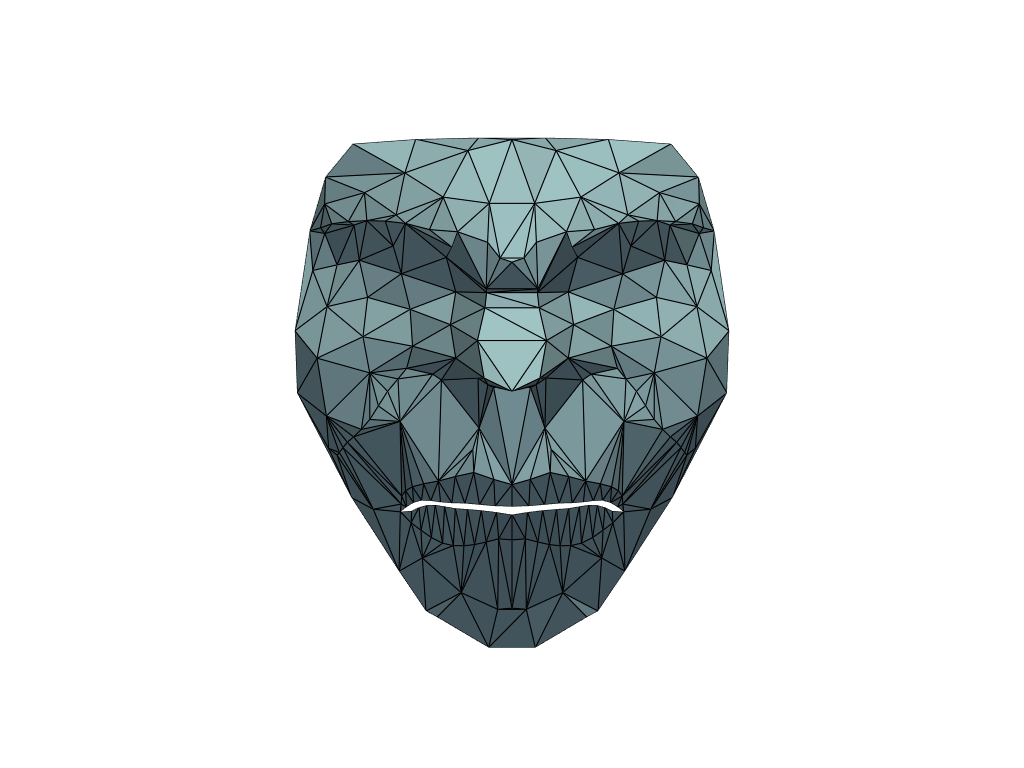

Oops, there’s some differences in the results. See below for an attempt to understand issue.

[29]:

meshes = {
    key: mesh.transform(viz_transform_alien, inplace=False)
    for key, mesh in parallel_meshes_.items()
}


pl = RegisteredMeshesGifPlotter(
    fps=10,
    border=False,
    off_screen=True,
    notebook=False,
)

pl.add_meshes(meshes)
pl.close()

pl.show()

[29]:

../../../_images/_notebooks_how_to_all_lddmm_shape_geodesic_43_0.png

Pole ladder#

[30]:

if not POLE_LADDER_DIR.exists():
    plddmm.geometry.parallel_transport(
        cp_name,
        momenta_name,
        momenta_to_transport_name,
        output_dir=POLE_LADDER_DIR,
        kernel_width=kernel_width,
        tmin=0.0,
        tmax=9.0,
        use_pole_ladder=True,
    )

transported_cp_ = plddmm.io.load_cp(POLE_LADDER_DIR, as_path=False)
transported_mom_ = plddmm.io.load_momenta(POLE_LADDER_DIR, as_path=False)

initial-control-points-to-transport was not specified, I am assuming they are the same as initial-control-points
In exponential update, I am not flowing because I don't have any template points to flow
In exponential update, I am not flowing because I don't have any template points to flow

[31]:

transported_mom = LoadMomentaFlow(
    as_path=False,
    as_array=True,
    extra_rules=Contains("Transported"),
)(OUTPUTS_DIR_CLI)[-1]

[32]:

np.amax(np.abs(transported_mom - transported_mom_))

[32]:

np.float64(1.105946396)
