LDDMM: importance of the data attachment term

import shutil
from pathlib import Path

import numpy as np
import pyvista as pv
from matplotlib import pyplot as plt

import polpo.lddmm as plddmm
from polpo.mesh.geometry import centroid2farthest_vertex, vertexwise_euclidean
from polpo.mesh.surface import PvSurface
from polpo.mesh.varifold.tuning import SigmaFromLengths
from polpo.plot.pyvista import RegisteredMeshesColoredPlotter
from polpo.preprocessing.load.pregnancy.deformetrica import get_two_random_meshes

[KeOps] Warning : CUDA was detected, but driver API could not be initialized. Switching to CPU only.

RECOMPUTE = False

STATIC_VIZ = True
VIZ = 1

if STATIC_VIZ:
    pv.set_jupyter_backend("static")

STRUCT_NAME = "L_Hipp"


OUTPUTS_DIR = Path.home() / ".polpo/results" / f"lddmm_data_attachment_{STRUCT_NAME}"
REGISTRATION_DIR = OUTPUTS_DIR / "registration"


if OUTPUTS_DIR.exists() and RECOMPUTE:
    shutil.rmtree(OUTPUTS_DIR)

meshes = get_two_random_meshes(
    OUTPUTS_DIR,
    mesh_names=("source", "target"),
    target_reduction=0,
)

if VIZ > 1:
    pl = pv.Plotter(border=False)

    for mesh in meshes:
        pl.add_mesh(mesh.as_pv(), show_edges=True, opacity=0.6)

    pl.show()

Following LDDMM: how to register a mesh to a template?.

registration_kwargs = dict(
    kernel_width=4.0,
    regularisation=1.0,
    max_iter=2000,
    freeze_control_points=False,
    tol=1e-16,
)

registration_dirs = []
mesh_filenames = list(meshes.keys())

sigma_search = SigmaFromLengths(
    ratio_charlen_mesh=2.0,
    ratio_charlen=0.25,
)
sigma_search.fit(meshes.values())

varifold_metric = sigma_search.optimal_metric_

metric = "landmark"
registration_dir = REGISTRATION_DIR / metric
registration_dirs.append(registration_dir)


if not registration_dir.exists():
    plddmm.registration.estimate_registration(
        mesh_filenames[0],
        mesh_filenames[1],
        metric=metric,
        output_dir=registration_dir,
        **registration_kwargs,
    )

Logger has been set to: INFO
>> No initial CP spacing given: using diffeo kernel width of 4.0
OMP_NUM_THREADS was not found in environment variables. An automatic value will be set.
OMP_NUM_THREADS will be set to 10
context has already been set
>> No specified state-file. By default, Deformetrica state will by saved in file: /home/luisfpereira/.polpo/results/lddmm_data_attachment_L_Hipp/registration/landmark/deformetrica-state.p.
>> Using a Sobolev gradient for the template data with the ScipyLBFGS estimator memory length being larger than 1. Beware: that can be tricky.
>> Set of 420 control points defined.
>> Momenta initialized to zero, for 1 subjects.
>> Started estimator: ScipyOptimize

>> Scipy optimization method: L-BFGS-B

------------------------------------- Iteration: 1 -------------------------------------

------------------------------------- Iteration: 20 -------------------------------------
>> Log-likelihood = -4.152E+02     [ attachment = -2.133E+02 ; regularity = -2.019E+02 ]

------------------------------------- Iteration: 40 -------------------------------------
>> Log-likelihood = -3.743E+02     [ attachment = -1.666E+02 ; regularity = -2.077E+02 ]

------------------------------------- Iteration: 60 -------------------------------------
>> Log-likelihood = -3.556E+02     [ attachment = -1.487E+02 ; regularity = -2.069E+02 ]

------------------------------------- Iteration: 80 -------------------------------------
>> Log-likelihood = -3.453E+02     [ attachment = -1.403E+02 ; regularity = -2.051E+02 ]

------------------------------------- Iteration: 100 -------------------------------------
>> Log-likelihood = -3.394E+02     [ attachment = -1.347E+02 ; regularity = -2.047E+02 ]

------------------------------------- Iteration: 120 -------------------------------------
>> Log-likelihood = -3.359E+02     [ attachment = -1.310E+02 ; regularity = -2.050E+02 ]

------------------------------------- Iteration: 140 -------------------------------------
>> Log-likelihood = -3.335E+02     [ attachment = -1.280E+02 ; regularity = -2.055E+02 ]

------------------------------------- Iteration: 160 -------------------------------------
>> Log-likelihood = -3.315E+02     [ attachment = -1.259E+02 ; regularity = -2.055E+02 ]

------------------------------------- Iteration: 180 -------------------------------------
>> Log-likelihood = -3.301E+02     [ attachment = -1.240E+02 ; regularity = -2.061E+02 ]

------------------------------------- Iteration: 200 -------------------------------------
>> Log-likelihood = -3.289E+02     [ attachment = -1.230E+02 ; regularity = -2.059E+02 ]
>> Gradient at Termination: 4.668068721272594
>> ABNORMAL:
>> Estimation took: 53 seconds

NB: use_svf=True affects the deformation model, not the data attachment term.

metric = "landmark"
registration_dir = REGISTRATION_DIR / f"{metric}_svf"
registration_dirs.append(registration_dir)


if not registration_dir.exists():
    plddmm.registration.estimate_registration(
        mesh_filenames[0],
        mesh_filenames[1],
        use_svf=True,
        metric=metric,
        output_dir=registration_dir,
        **registration_kwargs,
    )

Logger has been set to: INFO
>> No initial CP spacing given: using diffeo kernel width of 4.0
OMP_NUM_THREADS was not found in environment variables. An automatic value will be set.
OMP_NUM_THREADS will be set to 10
context has already been set
>> No specified state-file. By default, Deformetrica state will by saved in file: /home/luisfpereira/.polpo/results/lddmm_data_attachment_L_Hipp/registration/landmark_svf/deformetrica-state.p.
>> Using a Sobolev gradient for the template data with the ScipyLBFGS estimator memory length being larger than 1. Beware: that can be tricky.
>> Set of 420 control points defined.
>> Momenta initialized to zero, for 1 subjects.
>> Started estimator: ScipyOptimize

>> Scipy optimization method: L-BFGS-B

------------------------------------- Iteration: 1 -------------------------------------

------------------------------------- Iteration: 20 -------------------------------------
>> Log-likelihood = -4.341E+02     [ attachment = -2.262E+02 ; regularity = -2.078E+02 ]

------------------------------------- Iteration: 40 -------------------------------------
>> Log-likelihood = -3.891E+02     [ attachment = -1.757E+02 ; regularity = -2.134E+02 ]

------------------------------------- Iteration: 60 -------------------------------------
>> Log-likelihood = -3.724E+02     [ attachment = -1.611E+02 ; regularity = -2.113E+02 ]

------------------------------------- Iteration: 80 -------------------------------------
>> Log-likelihood = -3.633E+02     [ attachment = -1.525E+02 ; regularity = -2.108E+02 ]

------------------------------------- Iteration: 100 -------------------------------------
>> Log-likelihood = -3.582E+02     [ attachment = -1.479E+02 ; regularity = -2.103E+02 ]

------------------------------------- Iteration: 120 -------------------------------------
>> Log-likelihood = -3.547E+02     [ attachment = -1.432E+02 ; regularity = -2.114E+02 ]

------------------------------------- Iteration: 140 -------------------------------------
>> Log-likelihood = -3.522E+02     [ attachment = -1.405E+02 ; regularity = -2.118E+02 ]

------------------------------------- Iteration: 160 -------------------------------------
>> Log-likelihood = -3.504E+02     [ attachment = -1.384E+02 ; regularity = -2.120E+02 ]

------------------------------------- Iteration: 180 -------------------------------------
>> Log-likelihood = -3.490E+02     [ attachment = -1.367E+02 ; regularity = -2.123E+02 ]

------------------------------------- Iteration: 200 -------------------------------------
>> Log-likelihood = -3.479E+02     [ attachment = -1.354E+02 ; regularity = -2.125E+02 ]
>> Gradient at Termination: 39.79652326817482
>> CONVERGENCE: RELATIVE REDUCTION OF F <= FACTR*EPSMCH
>> Estimation took: 35 seconds

metric = "varifold"
registration_dir = REGISTRATION_DIR / metric
registration_dirs.append(registration_dir)


if not registration_dir.exists():
    plddmm.registration.estimate_registration(
        mesh_filenames[0],
        mesh_filenames[1],
        metric=metric,
        output_dir=registration_dir,
        attachment_kernel_width=sigma_search.sigma_,
        **registration_kwargs,
    )

Logger has been set to: INFO
>> No initial CP spacing given: using diffeo kernel width of 4.0
OMP_NUM_THREADS was not found in environment variables. An automatic value will be set.
OMP_NUM_THREADS will be set to 10
context has already been set
>> No specified state-file. By default, Deformetrica state will by saved in file: /home/luisfpereira/.polpo/results/lddmm_data_attachment_L_Hipp/registration/varifold/deformetrica-state.p.
>> Using a Sobolev gradient for the template data with the ScipyLBFGS estimator memory length being larger than 1. Beware: that can be tricky.
>> Set of 420 control points defined.
>> Momenta initialized to zero, for 1 subjects.
>> Started estimator: ScipyOptimize

>> Scipy optimization method: L-BFGS-B

------------------------------------- Iteration: 1 -------------------------------------

------------------------------------- Iteration: 20 -------------------------------------
>> Log-likelihood = -2.891E+02     [ attachment = -1.325E+02 ; regularity = -1.566E+02 ]

------------------------------------- Iteration: 40 -------------------------------------
>> Log-likelihood = -2.212E+02     [ attachment = -5.847E+01 ; regularity = -1.627E+02 ]

------------------------------------- Iteration: 60 -------------------------------------
>> Log-likelihood = -2.024E+02     [ attachment = -4.375E+01 ; regularity = -1.586E+02 ]

------------------------------------- Iteration: 80 -------------------------------------
>> Log-likelihood = -1.927E+02     [ attachment = -3.778E+01 ; regularity = -1.549E+02 ]

------------------------------------- Iteration: 100 -------------------------------------
>> Log-likelihood = -1.878E+02     [ attachment = -3.306E+01 ; regularity = -1.547E+02 ]

------------------------------------- Iteration: 120 -------------------------------------
>> Log-likelihood = -1.838E+02     [ attachment = -3.322E+01 ; regularity = -1.506E+02 ]

------------------------------------- Iteration: 140 -------------------------------------
>> Log-likelihood = -1.810E+02     [ attachment = -3.131E+01 ; regularity = -1.497E+02 ]

------------------------------------- Iteration: 160 -------------------------------------
>> Log-likelihood = -1.787E+02     [ attachment = -2.938E+01 ; regularity = -1.494E+02 ]
>> Gradient at Termination: 106.3541200889455
>> ABNORMAL:
>> Estimation took: 02 minutes and 32 seconds

metric = "varifold"
registration_dir = REGISTRATION_DIR / f"{metric}_svf"
registration_dirs.append(registration_dir)


if not registration_dir.exists():
    plddmm.registration.estimate_registration(
        mesh_filenames[0],
        mesh_filenames[1],
        metric=metric,
        use_svf=True,
        output_dir=registration_dir,
        attachment_kernel_width=sigma_search.sigma_,
        **registration_kwargs,
    )

Logger has been set to: INFO
>> No initial CP spacing given: using diffeo kernel width of 4.0
OMP_NUM_THREADS was not found in environment variables. An automatic value will be set.
OMP_NUM_THREADS will be set to 10
context has already been set
>> No specified state-file. By default, Deformetrica state will by saved in file: /home/luisfpereira/.polpo/results/lddmm_data_attachment_L_Hipp/registration/varifold_svf/deformetrica-state.p.
>> Using a Sobolev gradient for the template data with the ScipyLBFGS estimator memory length being larger than 1. Beware: that can be tricky.
>> Set of 420 control points defined.
>> Momenta initialized to zero, for 1 subjects.
>> Started estimator: ScipyOptimize

>> Scipy optimization method: L-BFGS-B

------------------------------------- Iteration: 1 -------------------------------------

------------------------------------- Iteration: 20 -------------------------------------
>> Log-likelihood = -3.112E+02     [ attachment = -1.494E+02 ; regularity = -1.618E+02 ]

------------------------------------- Iteration: 40 -------------------------------------
>> Log-likelihood = -2.367E+02     [ attachment = -6.753E+01 ; regularity = -1.691E+02 ]

------------------------------------- Iteration: 60 -------------------------------------
>> Log-likelihood = -2.144E+02     [ attachment = -4.800E+01 ; regularity = -1.664E+02 ]

------------------------------------- Iteration: 80 -------------------------------------
>> Log-likelihood = -2.043E+02     [ attachment = -4.031E+01 ; regularity = -1.639E+02 ]

------------------------------------- Iteration: 100 -------------------------------------
>> Log-likelihood = -1.990E+02     [ attachment = -3.762E+01 ; regularity = -1.614E+02 ]

------------------------------------- Iteration: 120 -------------------------------------
>> Log-likelihood = -1.948E+02     [ attachment = -3.419E+01 ; regularity = -1.606E+02 ]

------------------------------------- Iteration: 140 -------------------------------------
>> Log-likelihood = -1.918E+02     [ attachment = -3.225E+01 ; regularity = -1.595E+02 ]
>> Gradient at Termination: 169.85656457663794
>> ABNORMAL:
>> Estimation took: 02 minutes and 19 seconds

source, target = meshes.values()

reconstructed = {}
for registration_dir in registration_dirs:
    reconstructed[registration_dir.name] = PvSurface(
        plddmm.io.load_deterministic_atlas_reconstruction(registration_dir, as_pv=True)
    )

reconstructed["source"] = source

{
    name: varifold_metric.dist(target, reconstructed_)
    for name, reconstructed_ in reconstructed.items()
}

{'landmark': np.float64(15.674591642516685),
 'landmark_svf': np.float64(16.995952344389686),
 'varifold': np.float64(5.41578435415065),
 'varifold_svf': np.float64(5.6515407334274705),
 'source': np.float64(141.32513317492763)}

if VIZ > 0:
    ref_dist = centroid2farthest_vertex([target])[0]

    for name, reconstructed_ in reconstructed.items():
        pl = RegisteredMeshesColoredPlotter()

        pl.add_meshes(
            target.as_pv(),
            reconstructed_.as_pv(),
            ref_dist=ref_dist,
            show_edges=True,
            opacity=0.8,
            name="vertex diffs / ref dist",
        )

        pl.add_mesh(reconstructed_.as_pv(), show_edges=True, opacity=0.5)

        pl.add_title(name, font_size=8.0)

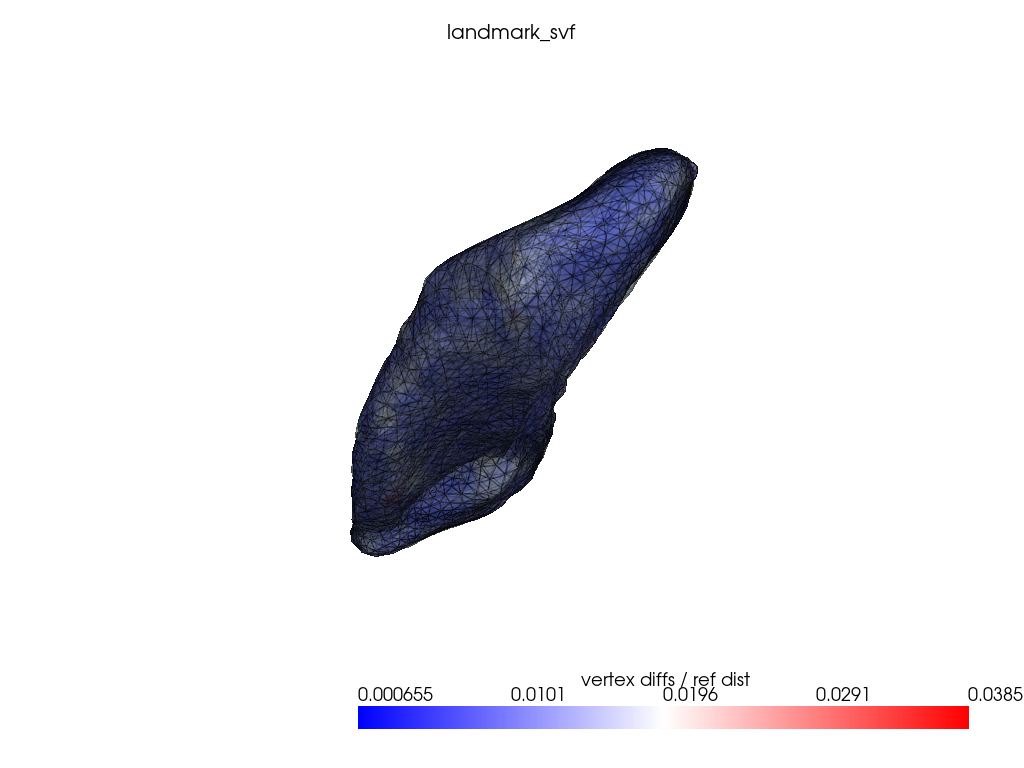

        pl.show()

_, ax = plt.subplots()

for name, reconstructed_ in reconstructed.items():
    vals = vertexwise_euclidean(target, reconstructed_) / ref_dist

    ax.hist(
        vals,
        weights=1 / len(vals) * np.ones_like(vals),
        label=name,
        alpha=0.6,
    )

ax.set_xlabel("Vertexwise euclidean distances / Ref dist")
ax.set_ylabel("Frequency")

ax.legend(bbox_to_anchor=(1.02, 1), loc="upper left");

Further reading

• LDDMM: influence of control points location

• LDDMM: influence of regularisation

• LDDMM: influence of time points
