LDDMM: influence of time points

import shutil
from pathlib import Path

import numpy as np
import pyvista as pv
from matplotlib import pyplot as plt

import polpo.lddmm as plddmm
from polpo.mesh.geometry import centroid2farthest_vertex, vertexwise_euclidean
from polpo.mesh.surface import PvSurface
from polpo.mesh.varifold.tuning import SigmaFromLengths
from polpo.plot.pyvista import RegisteredMeshesColoredPlotter
from polpo.preprocessing.load.pregnancy.deformetrica import get_two_random_meshes

[KeOps] Warning : CUDA was detected, but driver API could not be initialized. Switching to CPU only.

RECOMPUTE = True

STATIC_VIZ = True
VIZ = 1

if STATIC_VIZ:
    pv.set_jupyter_backend("static")

STRUCT_NAME = "L_Hipp"


OUTPUTS_DIR = Path.home() / ".polpo/results" / f"lddmm_time_points_{STRUCT_NAME}"
REGISTRATION_DIR = OUTPUTS_DIR / "registration"


if OUTPUTS_DIR.exists() and RECOMPUTE:
    shutil.rmtree(OUTPUTS_DIR)

meshes = get_two_random_meshes(
    OUTPUTS_DIR,
    mesh_names=("source", "target"),
    target_reduction=0,
)

if VIZ > 1:
    pl = pv.Plotter(border=False)

    for mesh in meshes:
        pl.add_mesh(mesh.as_pv(), show_edges=True, opacity=0.6)

    pl.show()

We select the varifold kernel using characteristic lengths.

sigma_search = SigmaFromLengths(
    ratio_charlen_mesh=2.0,
    ratio_charlen=0.25,
)

sigma_search.fit(meshes.values())

metric = sigma_search.optimal_metric_

sigma_search.sigma_

np.float64(5.529757953771692)

Following LDDMM: how to register a mesh to a template?.

mesh_filenames = list(meshes.keys())


def _registration_dir(n_time_points):
    return REGISTRATION_DIR / f"{str(n_time_points)}"


n_time_points = [10, 20, 50]

registration_kwargs = dict(
    kernel_width=4.0,
    regularisation=1.0,
    max_iter=2000,
    freeze_control_points=False,
    metric="varifold",
    tol=1e-16,
    attachment_kernel_width=sigma_search.sigma_,
)

for n_time_points_ in n_time_points:
    registration_dir = _registration_dir(n_time_points_)

    if not registration_dir.exists():
        plddmm.registration.estimate_registration(
            mesh_filenames[0],
            mesh_filenames[1],
            output_dir=registration_dir,
            number_of_time_steps=n_time_points_,
            **registration_kwargs,
        )

Logger has been set to: INFO
>> No initial CP spacing given: using diffeo kernel width of 4.0
OMP_NUM_THREADS was not found in environment variables. An automatic value will be set.
OMP_NUM_THREADS will be set to 10
context has already been set
>> No specified state-file. By default, Deformetrica state will by saved in file: /home/luisfpereira/.polpo/results/lddmm_time_points_L_Hipp/registration/10/deformetrica-state.p.
>> Using a Sobolev gradient for the template data with the ScipyLBFGS estimator memory length being larger than 1. Beware: that can be tricky.
>> Set of 420 control points defined.
>> Momenta initialized to zero, for 1 subjects.
>> Started estimator: ScipyOptimize

>> Scipy optimization method: L-BFGS-B

------------------------------------- Iteration: 1 -------------------------------------

------------------------------------- Iteration: 20 -------------------------------------
>> Log-likelihood = -1.455E+02     [ attachment = -5.988E+01 ; regularity = -8.561E+01 ]

------------------------------------- Iteration: 40 -------------------------------------
>> Log-likelihood = -1.155E+02     [ attachment = -2.750E+01 ; regularity = -8.801E+01 ]

------------------------------------- Iteration: 60 -------------------------------------
>> Log-likelihood = -1.079E+02     [ attachment = -2.309E+01 ; regularity = -8.478E+01 ]

------------------------------------- Iteration: 80 -------------------------------------
>> Log-likelihood = -1.039E+02     [ attachment = -1.975E+01 ; regularity = -8.418E+01 ]
>> Log-likelihood = -1.039E+02     [ attachment = -1.972E+01 ; regularity = -8.418E+01 ]

------------------------------------- Iteration: 100 -------------------------------------
>> Log-likelihood = -1.011E+02     [ attachment = -1.719E+01 ; regularity = -8.395E+01 ]

------------------------------------- Iteration: 120 -------------------------------------
>> Log-likelihood = -9.865E+01     [ attachment = -1.569E+01 ; regularity = -8.296E+01 ]
>> Gradient at Termination: 117.64593375481836
>> CONVERGENCE: RELATIVE REDUCTION OF F <= FACTR*EPSMCH
>> Estimation took: 01 minutes and 59 seconds
Logger has been set to: INFO
>> No initial CP spacing given: using diffeo kernel width of 4.0
OMP_NUM_THREADS was not found in environment variables. An automatic value will be set.
OMP_NUM_THREADS will be set to 10
context has already been set
>> No specified state-file. By default, Deformetrica state will by saved in file: /home/luisfpereira/.polpo/results/lddmm_time_points_L_Hipp/registration/20/deformetrica-state.p.
>> Using a Sobolev gradient for the template data with the ScipyLBFGS estimator memory length being larger than 1. Beware: that can be tricky.
>> Set of 420 control points defined.
>> Momenta initialized to zero, for 1 subjects.
>> Started estimator: ScipyOptimize

>> Scipy optimization method: L-BFGS-B

------------------------------------- Iteration: 1 -------------------------------------

------------------------------------- Iteration: 20 -------------------------------------
>> Log-likelihood = -1.443E+02     [ attachment = -5.881E+01 ; regularity = -8.547E+01 ]

------------------------------------- Iteration: 40 -------------------------------------
>> Log-likelihood = -1.149E+02     [ attachment = -2.731E+01 ; regularity = -8.762E+01 ]

------------------------------------- Iteration: 60 -------------------------------------
>> Log-likelihood = -1.075E+02     [ attachment = -2.162E+01 ; regularity = -8.591E+01 ]

------------------------------------- Iteration: 80 -------------------------------------
>> Log-likelihood = -1.037E+02     [ attachment = -1.956E+01 ; regularity = -8.413E+01 ]

------------------------------------- Iteration: 100 -------------------------------------
>> Log-likelihood = -1.008E+02     [ attachment = -1.706E+01 ; regularity = -8.374E+01 ]

------------------------------------- Iteration: 120 -------------------------------------
>> Log-likelihood = -9.845E+01     [ attachment = -1.581E+01 ; regularity = -8.263E+01 ]

------------------------------------- Iteration: 140 -------------------------------------
>> Log-likelihood = -9.665E+01     [ attachment = -1.594E+01 ; regularity = -8.071E+01 ]
>> Gradient at Termination: 82.66245518188731
>> ABNORMAL:
>> Estimation took: 02 minutes and 42 seconds
Logger has been set to: INFO
>> No initial CP spacing given: using diffeo kernel width of 4.0
OMP_NUM_THREADS was not found in environment variables. An automatic value will be set.
OMP_NUM_THREADS will be set to 10
context has already been set
>> No specified state-file. By default, Deformetrica state will by saved in file: /home/luisfpereira/.polpo/results/lddmm_time_points_L_Hipp/registration/50/deformetrica-state.p.
>> Using a Sobolev gradient for the template data with the ScipyLBFGS estimator memory length being larger than 1. Beware: that can be tricky.
>> Set of 420 control points defined.
>> Momenta initialized to zero, for 1 subjects.
>> Started estimator: ScipyOptimize

>> Scipy optimization method: L-BFGS-B

------------------------------------- Iteration: 1 -------------------------------------

------------------------------------- Iteration: 20 -------------------------------------
>> Log-likelihood = -1.447E+02     [ attachment = -5.962E+01 ; regularity = -8.510E+01 ]

------------------------------------- Iteration: 40 -------------------------------------
>> Log-likelihood = -1.155E+02     [ attachment = -2.762E+01 ; regularity = -8.789E+01 ]

------------------------------------- Iteration: 60 -------------------------------------
>> Log-likelihood = -1.076E+02     [ attachment = -2.206E+01 ; regularity = -8.552E+01 ]

------------------------------------- Iteration: 80 -------------------------------------
>> Log-likelihood = -1.037E+02     [ attachment = -1.925E+01 ; regularity = -8.442E+01 ]

------------------------------------- Iteration: 100 -------------------------------------
>> Log-likelihood = -1.009E+02     [ attachment = -1.709E+01 ; regularity = -8.382E+01 ]
>> Gradient at Termination: 86.49747456255216
>> ABNORMAL:
>> Estimation took: 03 minutes and 08 seconds

reconstructed = {}
cps = {}
for n_time_points_ in n_time_points:
    registration_dir = _registration_dir(n_time_points_)
    reconstructed[n_time_points_] = PvSurface(
        plddmm.io.load_deterministic_atlas_reconstruction(registration_dir, as_pv=True)
    )
    cps[n_time_points_] = plddmm.io.load_cp(registration_dir)


[cps_.shape[0] for cps_ in cps.values()]

[420, 420, 420]

_, target = meshes.values()

{
    n_time_points_: metric.dist(target, reconstructed_)
    for n_time_points_, reconstructed_ in reconstructed.items()
}

{10: np.float64(4.000095767754359),
 20: np.float64(3.997204971592177),
 50: np.float64(4.027821485068969)}

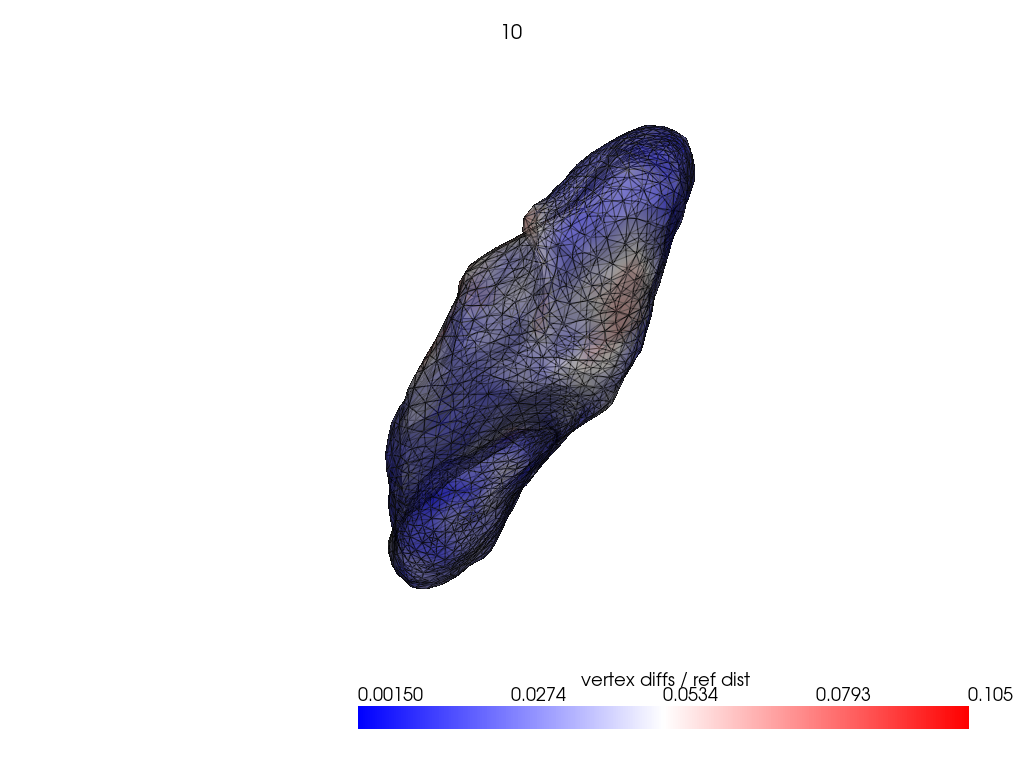

if VIZ > 0:
    ref_dist = centroid2farthest_vertex([target])[0]

    for name, reconstructed_ in reconstructed.items():
        pl = RegisteredMeshesColoredPlotter()

        pl.add_meshes(
            target.as_pv(),
            reconstructed_.as_pv(),
            ref_dist=ref_dist,
            show_edges=True,
            opacity=0.8,
            name="vertex diffs / ref dist",
        )

        pl.add_title(str(name), font_size=8.0)

        pl.show()

_, ax = plt.subplots()

for name, reconstructed_ in reconstructed.items():
    vals = vertexwise_euclidean(target, reconstructed_) / ref_dist

    ax.hist(
        vals,
        weights=1 / len(vals) * np.ones_like(vals),
        label=name,
        alpha=0.6,
    )

ax.set_xlabel("Vertexwise euclidean distances / Ref dist")
ax.set_ylabel("Frequency")

ax.legend(bbox_to_anchor=(1.02, 1), loc="upper left");

Further reading

• LDDMM: influence of control points location

• LDDMM: importance of the data attachment term

• LDDMM: influence of regularisation
